  Latest Single Phase Prepaid Electricity Meter - STS

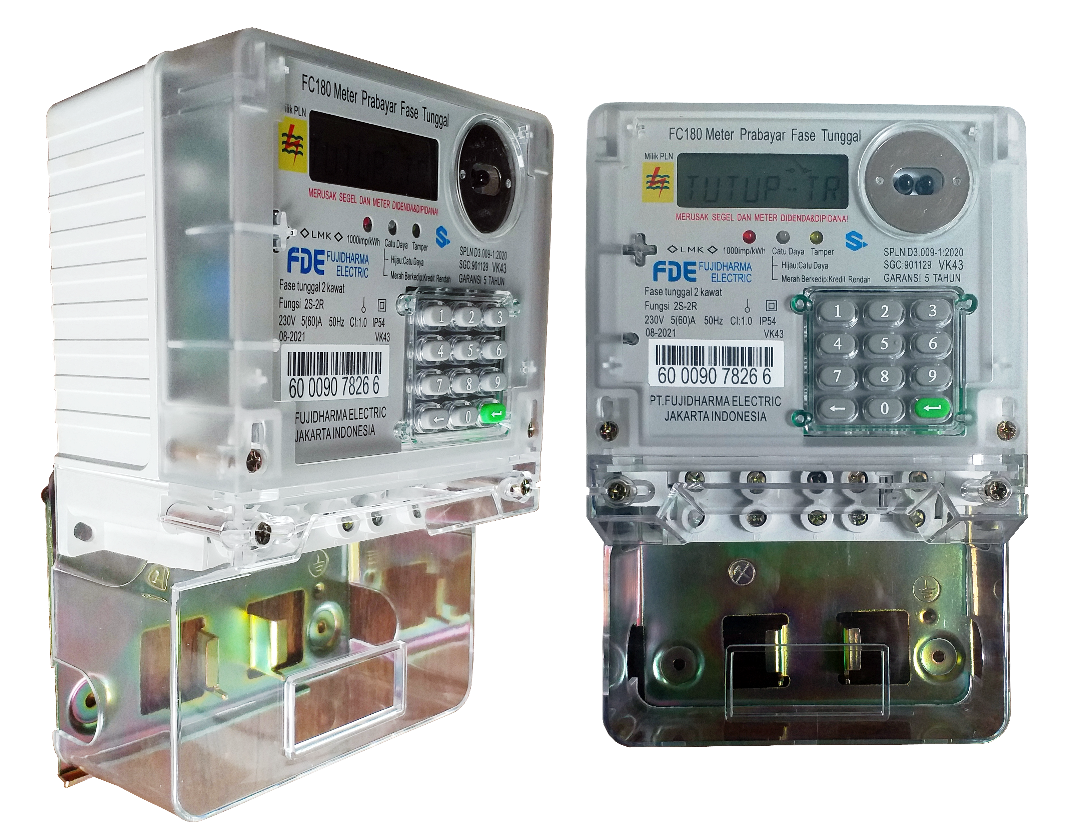

  FC180 Prepaid Electricity Meter is the latest service with various advantages in the use of electrical energy through prepaid electronic meters.

  The latest innovation oriented to customer convenience. Through Smart Electricity, you are more flexible in controlling electricity, according to your needs and desires.

  With Smart Electricity, using electricity becomes more convenient and more controllable. Designed for the housing sector and small industry and suitable for tropical climates.

  Download Brochure

• Measurement

  * Compliance with SPLN D3.009-1:2020
  * Wiring : 1 Phase 2 wire
  * Accuracy Class : 1.0

  Voltage

  * Nominal voltage (Un) : 230V
  * Operating range : 0.5 ~ 1.2 Un
  * Power consumption : < 2w, <10VA

  Current

  * 5(60)A

  Frequency

  * 50 Hz

  LCD Display

  * 14 segment
  * 8 character (6 digit + 2 decimal)

  Meter constant

  * 1000 imp/kWh

  Starting current

  * 10 mA PF 1.0

  Sensor and relay

  * 2 sensor 2 relay

  Feature

  * Tamper detection with time stamp
  * Event log 50 last token
  * Leakage current detection
  * Broken if opened cover
  * KRN2-STS Ready


  Quality improvement

  * Power Supply with Switching Technology
  * Magnetic Induction Resistant up to 500mT
  * Covering with Ultrasonic Welding
  * Coating on PCB Ass'y

Meter Dimensions and Wiring Diagram
